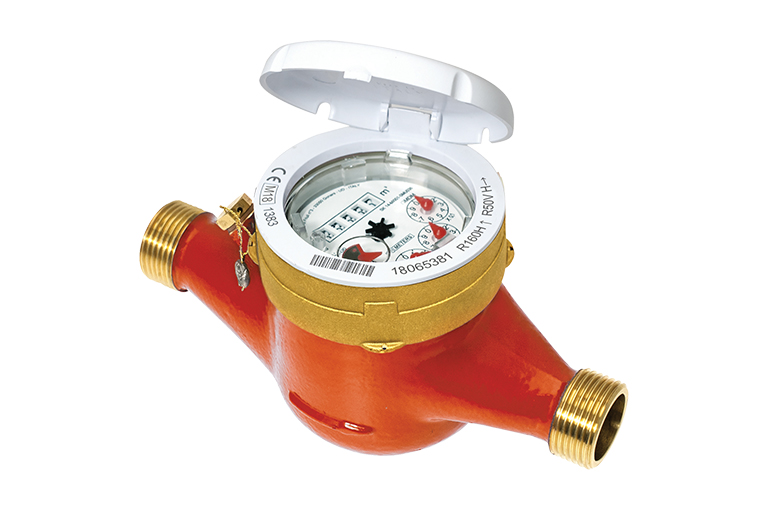

Pulsed Water Meters – Pulse Output for Hot Water Flow Monitoring
Choosing Pulsed Water Meters
For hot water (up to 90°C) applications, the size of water meter is usually determined by the gauge of pipe into which the meter will be fixed.
Please note that larger water meters have a large flowrate factor (in m³/h) and are less sensitive to low flow rates. If in doubt see the datasheet which provides technical information including flowrates, physical sizes and weights or call a Watersavers’ expert on 01603 720999 or email sales@watersavers.co.uk we’d be delighted to help.
WMP pulse water meters are fitted with a reed switch contact to provide one contact closure per fixed volume of water flowing through, whilst allowing the dial to be read. The contact output may be connected to a remote digital meter, leak detection panel or other electrical or electronic system.
Water Meter Monitoring Systems
Watersavers provides bespoke control panels for leak detection, flood prevention, alarm and other applications. Please call an expert on 01603 720999 or email sales@watersavers.co.uk
Pulsed Water Meters
Water meters are available with a pulsed output which can be used for remote monitoring making them suitable for installations applying for BREEAM Wat 02 and Wat 03.
Watersavers supplies a standard range of pulse water meters in sizes from 1/2” up to 4” BSP. These meters are WRAS approved and have a pulse output enabling water flow to be monitored, logged or controlled – especially for BREEAM credits.
These meters give a pulse output (usually from a magnetic reed switch) for a fixed volume of water flowing through them. The K factor is the number of litres per pulse output. On smaller meters from 1/2” to 1 1/4” BSP, the factor is usually 1 litre per pulse. This increases to 10 litres per pulse and 100 litres per pulse for larger meters.
Our WLDS-10mk3 and WLDS-20 mk3 leak detection panels monitor pulses from pulse water meters and raise an alarm in the event of the water flow rate exceeding preset parameters.
Hot Water Pulsed Water Meter Product Codes
| Water Meter Product Codes | Nominal Size | Maximum Flow Rate | Minimum Flow Rate | Litres/Pulse Options | Weight |
| Hot (up to 90 ° C) | British Standard Pipe (BSP) | m3/h | l/h | WMP models only | kg |
| WMP15H-K=1 | ½” | 2.5 | 30 | 1, 10, 100 | 2 |
| WMP20H-K=1 | ¾” | 4 | 50 | 1, 10, 100 | 2 |
| WMP25H-K=1 | 1” | 6.3 | 70 | 1, 10, 100 | 2.8 |
| WMP32H-K=1 | 1¼” | 10 | 120 | 1, 10, 100 | 2.8 |
| WMP40H-K=10 | 1½” | 15 | 300 | 10, 100, 1k | 4.65 |
| WMP50H-K=10 | 2” | 25 | 500 | 10, 100, 1k | 10.3 |
Larger sizes are available on request.
Features
- Suitable for installations applying for BREEAM Wat 02 & Wat 03 credits
- Ideal for monitoring water usage and BMS applications
- Only one moving part for minimum wear and maximum reliability – even in hard water areas
- Visual indicator sensitive to the smallest flow – ideal for leak detection
- Optional electrical ‘pulse’ output usually 1 per litre
- Sealed display capsule – guaranteed against condensation
This product will typically be dispatched within 2-3 working days.
